Integrate shelly pro 3em into IAMMETER-cloud

Use the scripting function of the Shelly Pro EM3 to forward data to IAMMETER-Cloud via the Push API of the virtual meter.

Repository on github

Apply for a "Virtual Meter" from IAMMETER

First, visit the IAMMETER Cloud website to apply for a Virtual Meter serial number (SN). For detailed steps, please refer to the following link: Apply for a Virtual Meter

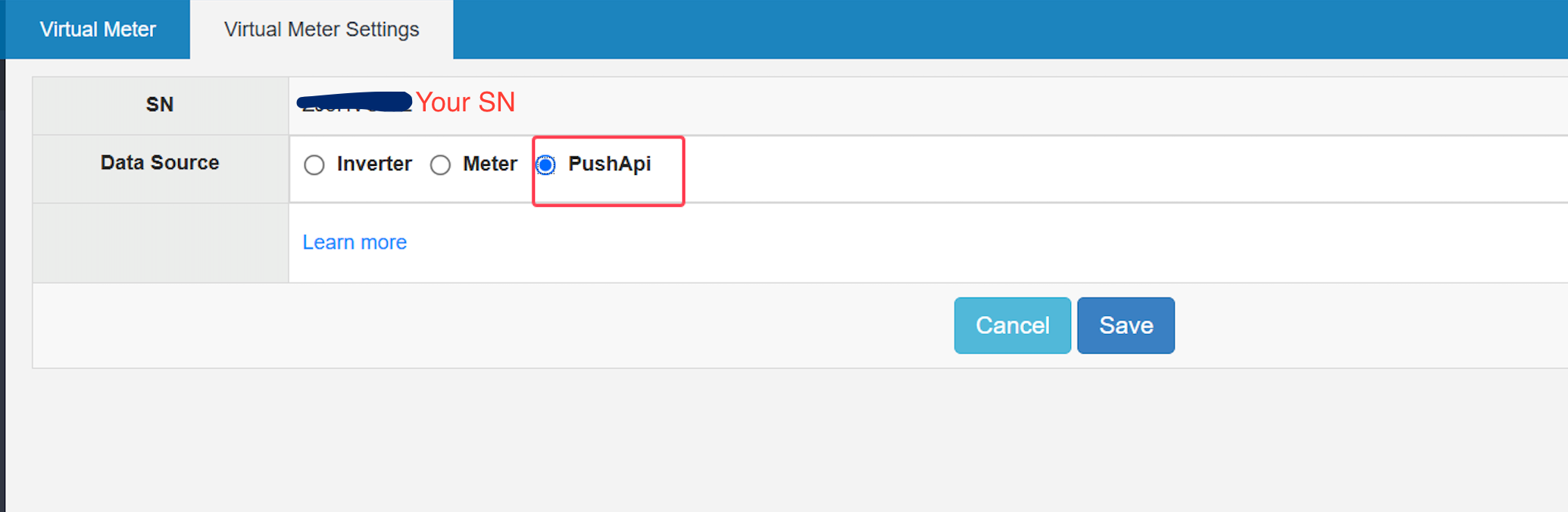

Next, select PushApi as the Data Source and click Save. See the screenshot below:

Select the data source as "PushAPI"

Scripting on Shelly

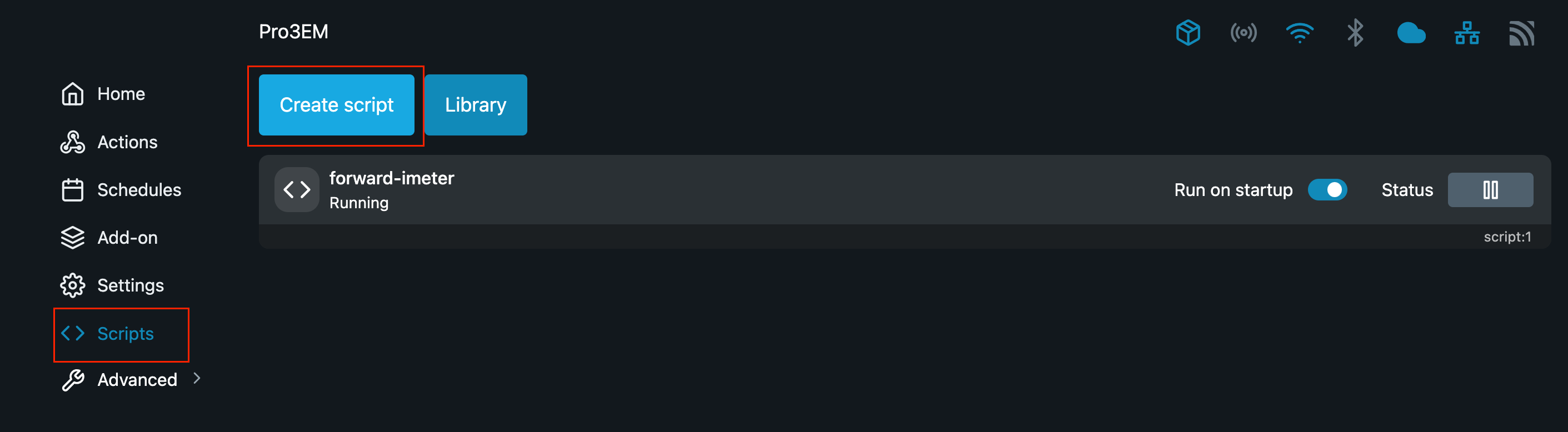

Open the local configuration interface of your Shelly Pro3EM device. Navigate to the Scripts tab and click the Create Script button, as shown in the image below:

Open the Scripts page to add a script

Then, use the script code available at the following link: forward-to-IAMMETER.js

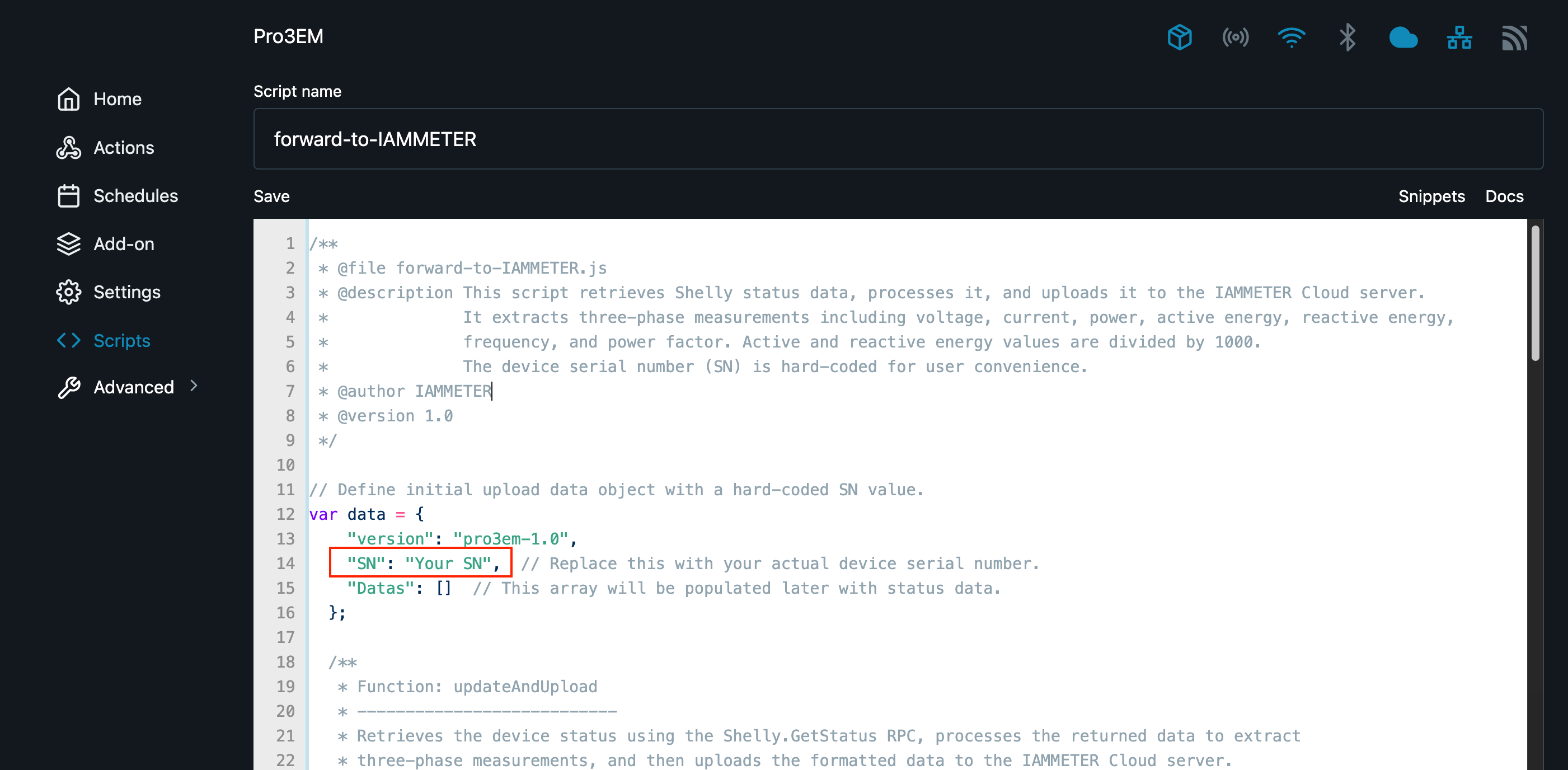

Make sure to replace the placeholder with the SN you applied for earlier. Finally, click Save. Refer to the following screenshot:

Configure the script

Using IAMMETER Cloud Features

After completing these settings, you can use IAMMETER Cloud to monitor your meter data. Compared to Shelly's native interface, IAMMETER Cloud offers several enhanced features:

  • Enhanced data visualization and extended data retention.
  • Flexible settings for various electricity and feed-in tariffs
  • Robust billing functionalities
  • Comprehensive report analysis
  • Smarter automation and control features

Discover even more powerful functionalities by visiting the IAMMETER website
